FUEL DISPENSING HOSE
Our fuel dispensing hoses are crafted for smooth, efficient refueling operations across industries, designed with a focus on durability and reliability. Built from robust, reinforced materials, they enhance safety by resisting wear and tear, thereby reducing the risk of leaks. These hoses are engineered for maximum flexibility and maneuverability, making handling and positioning easy during refueling. Resistant to corrosion, they can withstand fuel, chemicals, and environmental elements. Compatible with various fuel types, including gasoline, diesel, and biodiesel, they offer a versatile, adaptable solution for diverse refueling applications across industries.
– 3/4″ & 1″ NITRILE HOSE ONLY –
Our premium Cloth-Reinforced Nitrile Hose, specifically designed for effective fuel delivery applications. Available in both 3/4″ and 1″ internal diameter sizes, this durable hose is ideal for transferring diesel, ensuring reliable performance and safety.
Each hose is made from high-quality nitrile material, offering excellent resistance to fuels, oils, and other petroleum-based products. The cloth reinforcement enhances the hose’s structural integrity, providing greater durability and flexibility, making it suitable for a variety of demanding environments.
Our nitrile hoses are sold in customisable lengths, allowing you to select the exact measurement you require—up to a maximum of 30 metres in a continuous piece. This ensures that you can tailor your purchase to match your specific project needs without the inconvenience of multiple shorter lengths.
– 3/4″ & 1″ STEEL REINFORCED HOSE ONLY –
Introducing our high-performance steel reinforced hose, designed specifically for optimal use with diesel and oil applications. This premium hose features a helicoidal steel reinforcement integrated into its walls, providing exceptional durability and structural integrity. The unique design prevents the hose from collapsing under suction pressures or during winding on a hose reel, ensuring reliability in a variety of operational environments.
Available for purchase in cut lengths, our hoses are sold by the meter, with a maximum length of 30 meters available in a single continuous piece. This flexibility allows for customized lengths tailored to your specific requirements, minimizing waste and enhancing efficiency in your projects.
We offer two conveniently sized internal diameters for immediate availability: 3/4 inch and 1 inch. These options cater to a broad range of applications, making our steel reinforced hose a versatile choice for professionals in numerous industries.
– 3/4″ & 1″ NITRILE HOSE W/ HOSE TAILS –
3/4″ Nitrile diesel hose for dispensing complete with crimped on male threaded BSP hose tails. Optional 3/4″ or 1″ hose tails.
This diesel hose is a specially formulated blend of nitrile compound and PVC. The three layer construction is strengthened by 24 polyester braid reinforcement. It is then heated and chemically bonded to create an extremely strong and reliable hose solution.
As it is specifically designed to convey diesel fuel, this hose is resistant to oil and fuel and will withstand prolonged contact. The working pressures quoted within the charts are based on the short term burst pressures calculated at 20°C using a 4-to 1 safety factor. Maximum recommended working temperature is 45°C. At temperatures above 20°C working pressures quoted would be affected. Below -25°C bend radius and flexibility would be affected.
– 3/4″ & 1″ STEEL REINFORCED HOSE W/ HOSE TAILS –
Our 1″ steel reinforced diesel hose has a helicoil of steel running through the wall to prevent it collapsing and restricting the flow.
Two-layer hose in thermoplastic PVC/PU/NITRILE rubber compound with embedded galvanised steel spiral and polyester yarn reinforcement for suction and delivery of oils, blue diesel, diesel and bio-diesel.
The working pressures quoted within the chart are based on the short term burst pressures calculated at 23°C using a 4-to 1 safety factor.
Maximum recommended working temperature is 60°C. At temperatures above 55°C working pressures quoted would be affected. Below -25°C bend radius and flexibility would be affected.
Hose tail variations: There are 3 options for hose tails, 1” BSP Parallel male hose tail, ¾” BSP Parallel male hose tail and 1” BSP taper male hose tail. Use the drop down box to select which is required.
Fitting Parallel vs Taper:
A parallel thread has a straight thread and will continue to screw all the way in until it reaches its full thread length or bottoms out on the internal surface. This is ideal if the seal is using an o’ring or gasket(thread depth dependant for gaskets).
A taper thread increases in size so will tighten as it is screwed in and usually lock up completely before it reaches its full length of thread.
If the seal is going to be an o’ring or a gasket then parallel thread would normally be the best option.
If the seal is thread on thread with no o’ring or gasket then potentially either can be used. For moderately low pressure applications for which this hose is intended both taper and parallel thread can be sealed using an appropriate thread seal tape i.e. PTFE white plumbers tape, or appropriate thread sealant paste/glue. For parallel thread more thread seal tape will be necessary. A taper thread will require less thread seal tape and be able to be tightened to a higher degree(NB: the hose tails are aluminium thread – overtightening may cause damage).
HOSE KITS
– DIESEL SUCTION HOSE KIT –
Our top quality Diesel Suction Hose, the perfect solution for efficient and safe diesel transfer operations. Made with PVC/Nitrile rubber which is cloth reinforced, each hose is meticulously designed to meet your suction hose needs with unmatched reliability.
Equipped with a 1″ fitting perfectly tailored for seamless attachment to your pump’s suction port, our hose ensures a snug fit and hassle-free operation. Additionally, it features a foot valve (non-return valve) and a mesh basket strainer, providing protection against unwanted debris infiltration, safeguarding your pump’s internal components from potential damage.
– DIESEL DELIVERY HOSE KIT – 1″ STANDARD HOSE & AUTO NOZZLE –
Our cloth reinforced PVC nitrile diesel delivery hose kit with automatic shut off gun, designed to meet your demanding requirements with efficiency and reliability. Crafted to deliver an impressive flow rate of up to 60 liters per minute, this hose ensures seamless performance in various applications.
Tailor your setup with our customizable options. Select from a range of lengths, from 3 meters to 10 meters, to suit your specific operational needs.
- Cam Coupling – Featuring push quick fit connectors for swift and hassle-free installation.
- Swivel Joint – Providing enhanced manoeuvrability and flexibility during operation.
- Standard Hose Tail – Offering a traditional yet robust connection option for dependable performance.
– GRAVITY FED DISPENSING HOSE KITS –
Our Gravity Fed Dispensing Hose Kits are designed for efficient, power-free fuel dispensing, ideal for locations where electrical power isn’t available. Perfect for both diesel and kerosene, these kits come in three variations to suit your specific needs:
- Gravity Dispensing Hose Kit with Straight Connection
- Gravity Dispensing Hose Kit with 90° Gate Valve Connection

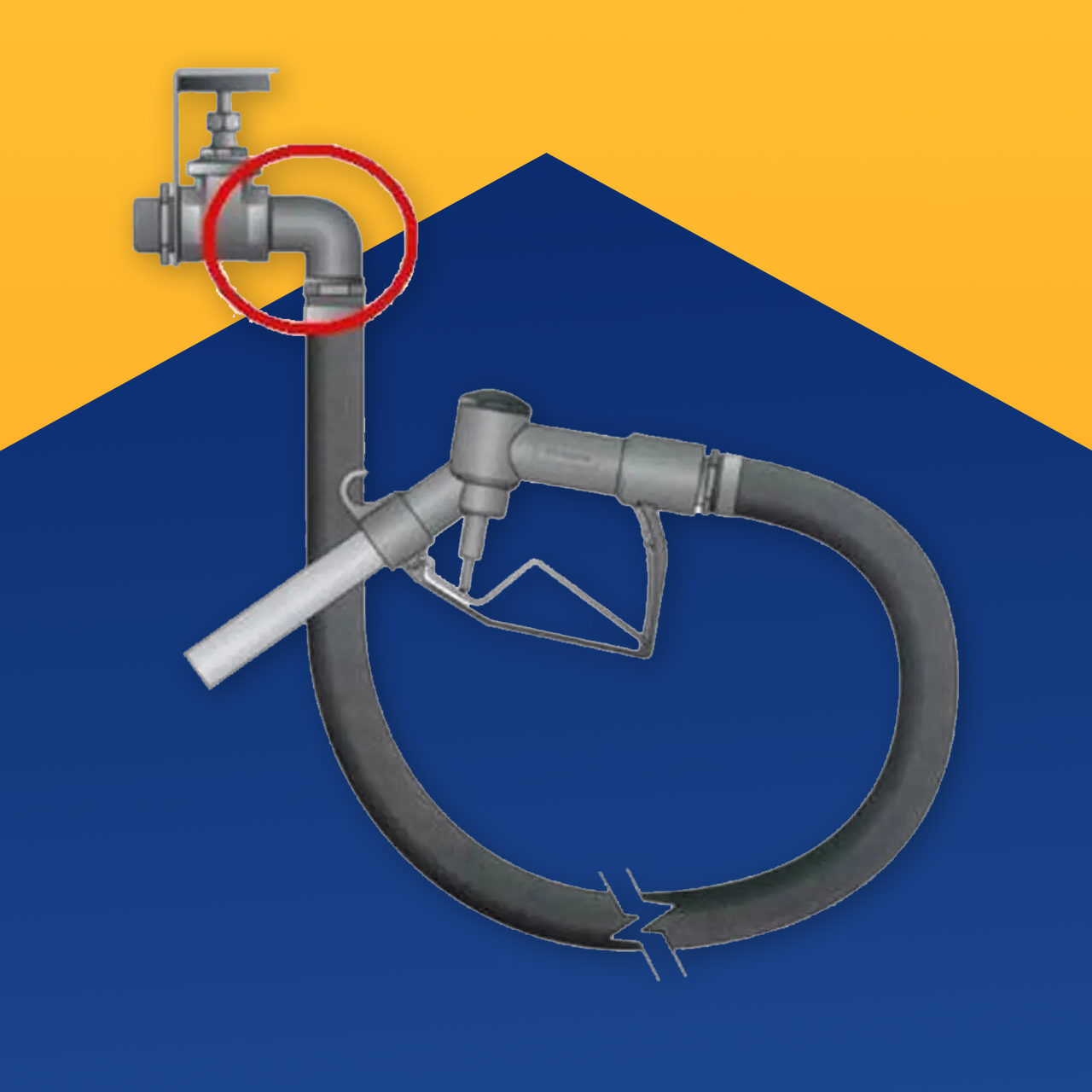

- Gravity Dispensing Hose Kit with 90° Drop Elbow Connection
These kits are pre-assembled for ease of use, providing up to 60 liters per minute (lpm) dispensing speed, ensuring reliability and efficiency. Gravity feed systems utilize the force of gravity to deliver fuel directly from the tank to the dispensing point, eliminating the need for additional components like fuel pumps or pressure regulators. This simplifies the fuel system, making it both easy to maintain and cost-effective, ideal for applications where simplicity and durability are key.
Available hose lengths include 3M, 4M, 5M, 6M, 8M, and 10M, allowing you to select the best fit for your setup. With a gravity-fed system, you get a straightforward, low-maintenance solution for efficient fuel delivery.
