FUEL FILTERS & ELEMENTS

Our fuel filters are expertly engineered to protect against contaminants, ensuring high fuel quality and preserving system integrity. Designed to capture and remove impurities like dirt, debris, water, and other particles, our filters, including the Groz Filter Service Kit, prevent harmful contaminants from reaching vital engine components, extending engine life and reducing the risk of expensive repairs. By maintaining fuel purity, our filters enhance engine performance, supporting fuel efficiency, power output, and smooth operation for improved acceleration, reduced emissions, and better fuel economy. Built to safeguard sensitive engine parts, these filters offer a strong layer of protection and extend service intervals, reducing the need for frequent maintenance while keeping your fuel system clean and efficient.

– GROZ WATER/PARTICULATE BLOCK FUEL FILTER –

A Groz Fuel Tank Filter to suit different types of fuels in agricultural & industrial applications. Durable & lightweight design for easy installation on mobile & stationary fuel tanks and on gasoline & diesel fuel pumps.

A transparent polycarbonate bowl provides a visual aid to inspection the filter and a water-drain plug is provided in order to release any water that settles in the bottom of the bowl. This fuel tank filter comes complete with a water-block 10-micron element and a replacement water block & particulate filter element is available, also is a 10-micron particulate only version.

The water block filter element is impregnated with a water-absorbing polymer that absorbs and traps any water that comes into contact with it.

Shop now

– FIXED HOSE TAILS –

These tails are CNC machined in house in our workshop in aluminium to suit 1 inch and 3/4 inch hose. Should you require a large quantity please contact us for a lead time so we can plan your order on our machines. Available as straight connectors to fit same sized hose/nozzles or to act as reducer/enlargers to connect different sized hose/nozzles. Suitable for diesel and most standard fuels. Not suitable for use with AdBlue.

All BSPM threads are parallel with the exception of ‘1 BSPM Taper x 1 Tail’, which is suitable for use where it is not being fitted into a nozzle/swivel that has a seating washer. You will need to ensure you have the correct size jubilee clips to attach the hose tails to your hose.

Shop Now

We supply a large range of fuel filters. From heating oil filters to inline fuel filters including canister and water trap filters.

Filters for Heating Oil

The range of inline heating oil filters we do include clear plastic filter bowls and metal filter bowls

We supply a range of sizes including 3/8″, 1/2″, 3/4″ and 1″ filter heads.

We also supply paper or stainless steel mesh replacement filter elements in various grades such as 15 and 100 microns.

We have several brands available such as:

FAG

FAG Filter

lgiuliani_anello

water_trap_filter__90962_zoom

Atkinson Equipment Logo

M5040-A-lr__65390_zoom copy

Fuel Filters

We supply cannester fuel filters, along with the filter heads for flow rates upto 150 litres per minute, for pumped and gravity feed systems. We do various grades including 2,10,30 and 100 microns. In particulate and water block. The water block filters we do come with a filter bowl with a water drain tap for removal of water in the filter.

Goldenrod_Fuel_Filter_2_600_479 copy

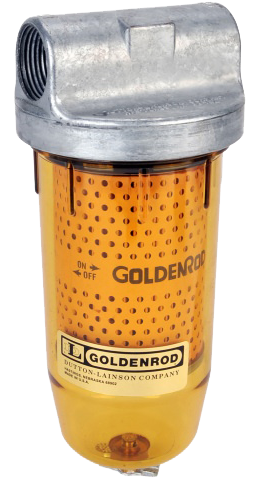

Goldenrod Water-Block Filter, 1″ BSP

Important note:  These are genuine Golden Rod Filters & Elements and are not ‘grey imports/forgeries’

Standard Particulate only model

For removing microscopic particles (10 microns) of rust, sand, dirt, scale and lint. 366 sq. inches of filter surface for efficient action. Unit works well by itself or in combination with the water block fuel filter for added protection from water in the fuel. 9 1⁄2″ high x 4″ diameter.

Water + Particulate Model

Removes water from gasoline and diesel fuel. 15 micron filtration. Water-absorbing polymers trap water, restricting fuel flow when it is time to replace the element. May be used by itself or in combination with a Particulate fuel filter for added protection against microscopic particle contamination. 9 1/2″ high by 4″ diameter.

groz_600_479 copy

Groz Water Block Filter, 1″ BSP

This is a Groz water block fuel filter and a replacement element is available.  A transparent polycarbonate bowl provides a visual aid to inspection the filter and a water-drain plug is provided in order to release any water that settles in the bottom of the bowl.

This comes complete with a water-block 10 micron element and a  replacement water block & particulate filter element is available, as is a 10 micron particulate only version.

The water block filter element is impregnated with a water absorbing polymer that absorbs and traps any water that comes into contact with it.

Suitable for use with most fuels, including Diesel, Bio-diesel, Petrol and Kerosene.

Also available as a particulate fuel tank filter.

Duplex_Filter_System__25717_zoom

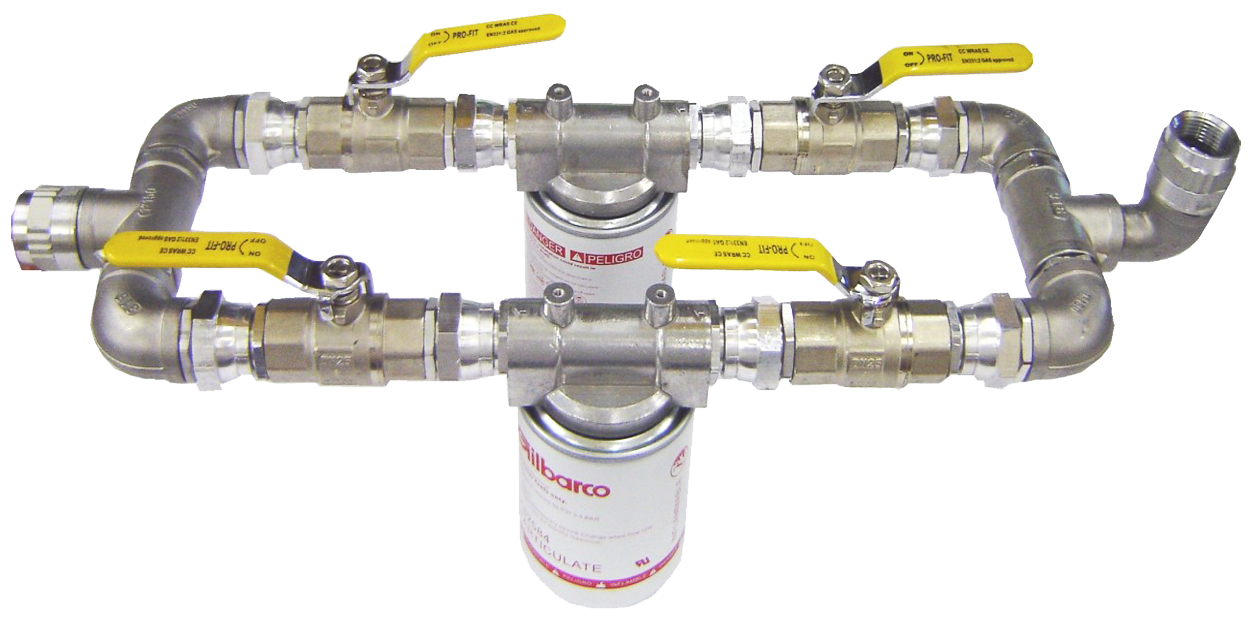

Duplex Filter System for Cimtek compatible filter canisters

This Duplex Filter System allows you to change your canister filter elements without stopping the flow of your fuel.

The pipe work is all 1″ BSP and has a swivel 1 end to enable easy fitting with either flexible or fixed hose.

Please see the drop down options box for compatible canister filter elements.

GP129320-02___GP906005-67__10378_zoom (1)

GPI Water & Particulate Fuel Tank Filter 150lpm. Bio & Non-Bio

GP129340-05___GFH3581-A_1__93423_zoom (1)

Cim-Tek Particulate & Water BIO Fuel Tank Filter 95lpm

GFH3580___GFH3581-A_1__08918_zoom (1)

Gilbarco Particulate Only Fuel Tank Filter 50lpm
